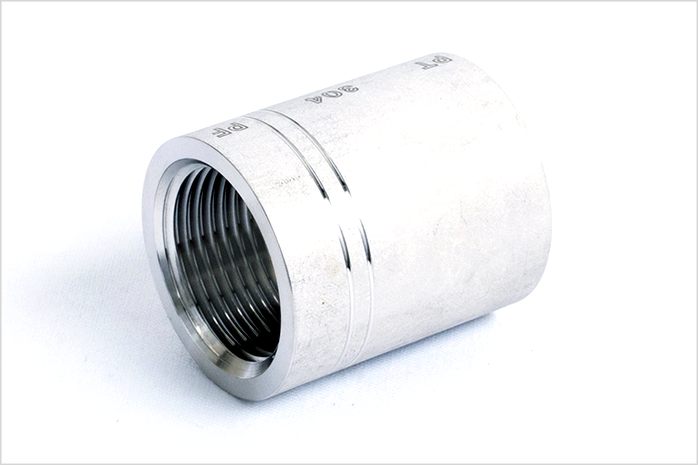

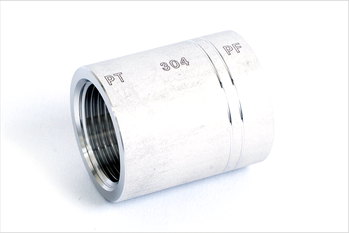

Conversion sockets (PT x PF) low voltage type
This is an original product of Izutsu Seisakusho.
The conversion socket is made of SUS304 material. It serves as a joint between a parallel pipe thread and a tapered pipe thread. In addition, they are controlled by PF and PT gauges at our own factory.
Product Specifications
| Max. working pressure | 2.00Mpa or less (-20°C to 40°C) |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | outer diameter | length | |
|---|---|---|---|
| Dφ | L | ||
| PT 1/8×PF 1/8 | SSTF-0606 | 15 | 19 |
| PT 1/4×PF 1/4 | SSTF-0808 | 19 | 27 |
| PT 3/8×PF 3/8 | SSTF-1010 | 23 | 28 |
| PT 1/2×PF 1/2 | SSTF-1515 | 28 | 37 |
| PT 3/4×PF 3/4 | SSTF-2020 | 34 | 39 |
| PT １×PF １ | SSTF-2525 | 40 | 46 |
| PT １1/4×PF １1/4 | SSTF-3232 | 51 | 51 |
| PT １1/2×PF １1/2 | SSTF-4040 | 58 | 51 |
| PT ２×PF ２ | SSTF-5050 | 70 | 60 |
| PT 2 1/2×PF 2 1/2 | SSTF-6565 | 87 | 73 |
| PT 3 ×PF 3 | SSTF-8080 | 102 | 81 |
| PT 4 ×PF 4 | SSTF-0100 | 127 | 93 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
