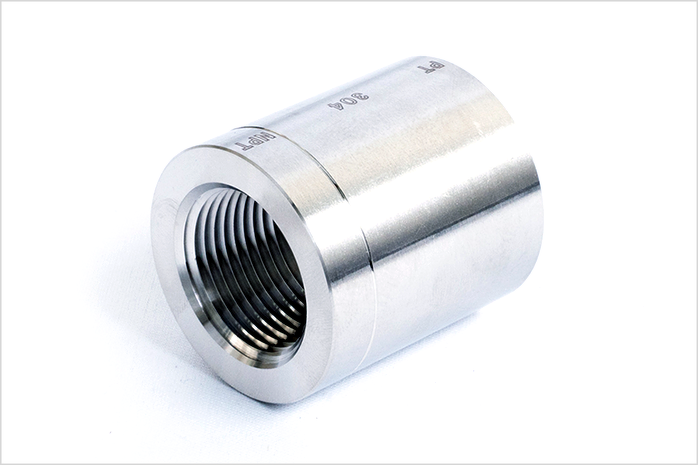

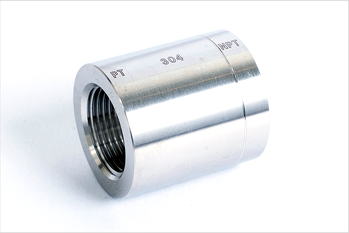

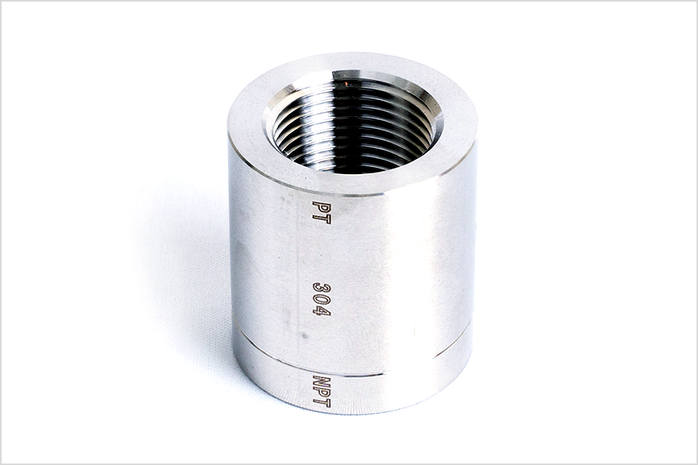

Conversion sockets (PT x NPT) high pressure type
Izutsu's conversion sockets are made of SUS304 material. It serves as a joint between an American screw and a Japanese screw, and has excellent durability to withstand high pressure. In addition, they are controlled by NPT and PT gauges at our own factory.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | outer diameter | length | |
|---|---|---|---|
| Dφ | L | ||
| PT 1/8×NPT 1/8 | SSPN-0606 | 18 | 28 |
| PT 1/4×NPT 1/4 | SSPN-0808 | 22 | 28 |
| PT 3/8×NPT 3/8 | SSPN-1010 | 25 | 33 |
| PT 1/2×NPT 1/2 | SSPN-1515 | 32 | 37 |
| PT 3/4×NPT 3/4 | SSPN-2020 | 38 | 42 |
| PT １×NPT １ | SSPN-2525 | 46 | 45 |
| PT １1/4×NPT １1/4 | SSPN-3232 | 55 | 52 |
| PT １1/2×NPT １1/2 | SSPN-4040 | 65 | 56 |
| PT ２×NPT ２ | SSPN-5050 | 75 | 66 |
| PT 2 1/2×NPT 2 1/2 | SSPN-6565 | 90 | 70 |
| PT 3 ×NPT 3 | SSPN-8080 | 100 | 82 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
Since no pressure resistance test has been conducted, no pressure resistance guarantee is provided.
