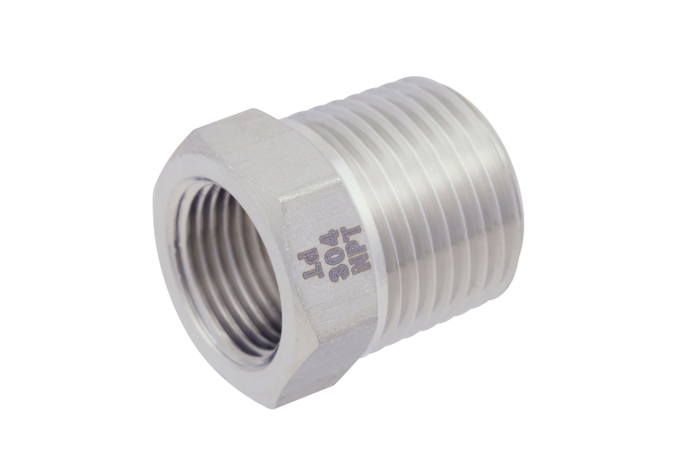

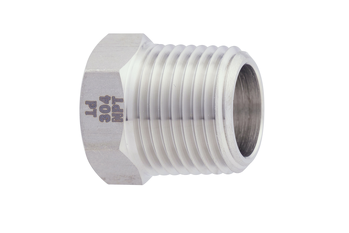

Bushing (NPTxPT) High pressure type
This bushing has an NPT thread on the male side and a PT thread on the female side.
Bushing NPTxPT is made of SUS304 material, which is corrosion resistant and can be used in a wide range of applications. We offer a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| ＮPT1/4×PT1/8 | SBNP-0806 | 14 | 19 |
| ＮPT3/8×PT1/4 | SBNP-1008 | 17 | 22 |
| NPT1/2×PT1/4 | SBNP-1508 | 22 | 25 |
| NPT1/2×PT3/8 | SBNP-1510 | 22 | 25 |
| NPT3/4×PT3/8 | SBNP-2010 | 27 | 28 |
| NPT3/4×PT1/2 | SBNP-2015 | 27 | 28 |
| NPT1”×PT1/2 | SBNP-2515 | 35 | 30 |
| NPT1”×PT3/4 | SBNP-2520 | 35 | 30 |
We can also manufacture products in sizes and materials not listed, so please feel free to contact us.
