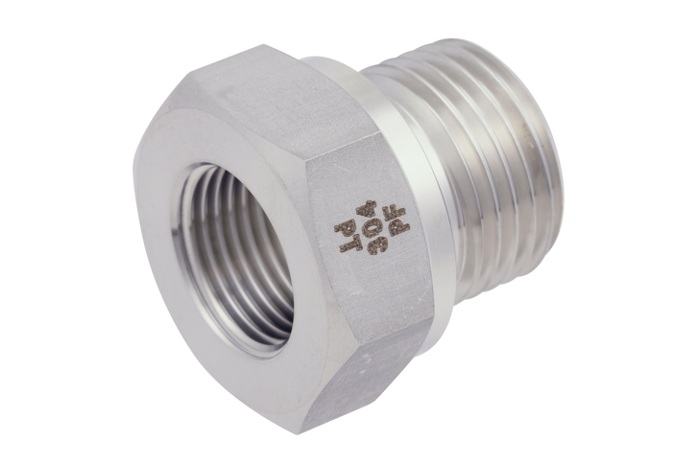

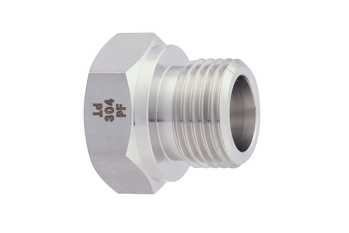

Bushing (PFxPT) High pressure type
Bushings with PF thread on the male side and PT thread on the female side.
Bushing PFxPT is made of SUS304 material, which is corrosion resistant and can be used in a wide range of applications. We offer a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PF1/4×PT1/8 | SBFT-0806 | 19 | 21 |
| PF3/8×PT1/4 | SBFT-1008 | 22 | 22 |
| PF1/2×PT1/4 | SBFT-1508 | 27 | 27 |
| PF1/2×PT3/8 | SBFT-1510 | 27 | 27 |
| PF3/4×PT3/8 | SBFT-2010 | 36 | 32 |
| PF3/4×PT1/2 | SBFT-2015 | 36 | 32 |
| PF1”×PT1/2 | SBFT-2515 | 41 | 36 |
| PF1”×PT3/4 | SBFT-2520 | 41 | 36 |
| PF1-1/4×PT1” | SBFT-3225 | 50 | 41 |
| PF1-1/2×PT1” | SBFT-4025 | 55 | 42 |
| PF2”×PT1-1/2 | SBFT-5040 | 75 | 48 |
We can also manufacture other sizes and materials not listed here, so please feel free to contact us. NBR O-ring for PF side is also available. Please feel free to contact us.
