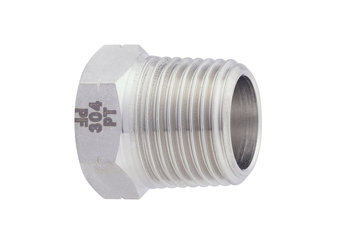

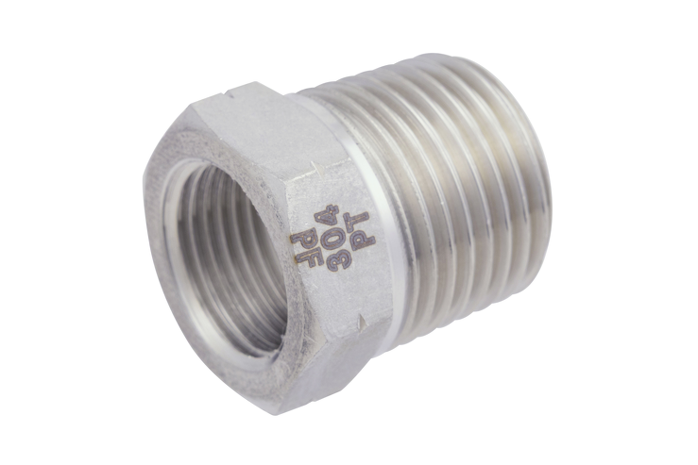

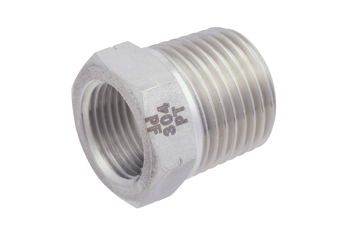

Bushing (PTxPF) High pressure type
Bushings with PT thread on the male side and PF thread on the female side.
Bushing PTxPF is made of SUS304 material, which is corrosion resistant and can be used in a wide range of applications. We offer a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PT1/4×PF1/8 | SBTF-0806 | 14 | 19 |
| PT3/8×PF1/4 | SBTF-1008 | 17 | 22 |
| PT1/2×PF1/4 | SBTF-1508 | 22 | 25 |
| PT1/2×PF3/8 | SBTF-1510 | 22 | 25 |
| PT3/4×PF3/8 | SBTF-2010 | 27 | 28 |
| PT3/4×PF1/2 | SBTF-2015 | 27 | 28 |
| PT1”×PF1/2 | SBTF-2515 | 35 | 30 |
| PT1”×PF3/4 | SBTF-2520 | 35 | 30 |
| PT1-1/4×PF1” | SBTF-3225 | 46 | 34 |
| PT1-1/2×PF1” | SBTF-4025 | 50 | 37 |
| PT2”×PF1-1/2 | SBTF-5040 | 63 | 41 |
We can also manufacture products in sizes and materials not listed, so please feel free to contact us.
