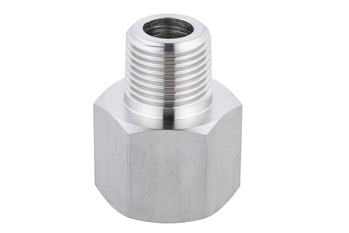

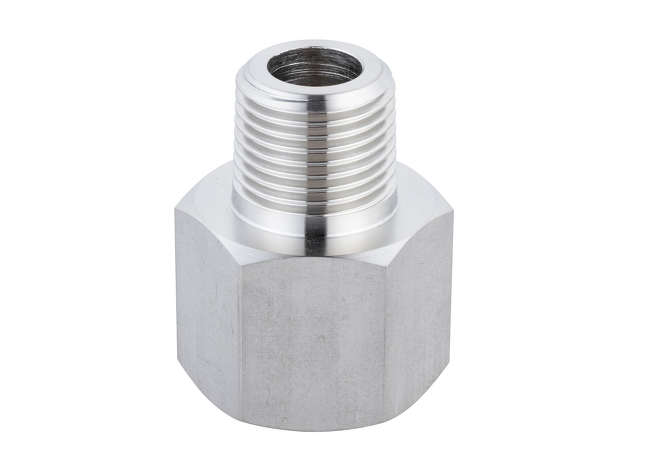

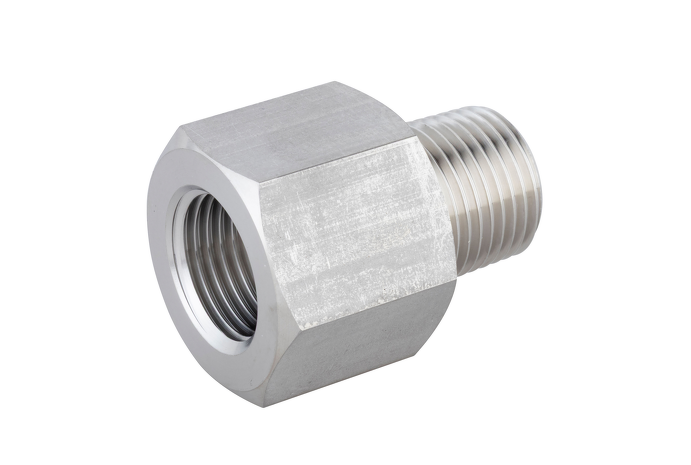

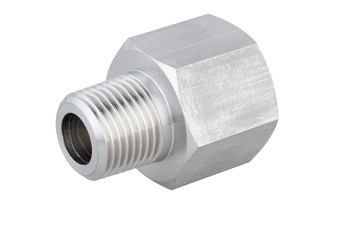

Female-male socket (PT x PT) high pressure type
Izutsu's female and male sockets (PT x PT) are made of SUS304 material, which is corrosion resistant and can be used in a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PT 1/8×PT 1/16 | SMPT-0604 | 17 | 26 |
| PT 1/8×PT 1/8 | SMPT-0606 | 17 | 28 |
| PT 1/4×PT 1/8 | SMPT-0806 | 22 | 29 |
| PT 1/4×PT 1/4 | SMPT-0808 | 22 | 33 |
| PT 3/8×PT 1/8 | SMPT-1006 | 24 | 31 |
| PT 3/8×PT 1/4 | SMPT-1008 | 24 | 35 |
| PT 3/8×PT 3/8 | SMPT-1010 | 24 | 36 |
| PT 1/2×PT 1/8 | SMPT-1506 | 32 | 36 |
| PT 1/2×PT 1/4 | SMPT-1508 | 32 | 40 |
| PT 1/2×PT 3/8 | SMPT-1510 | 32 | 41 |
| PT 1/2×PT 1/2 | SMPT-1515 | 32 | 45 |
| PT 3/4×PT 1/8 | SMPT-2006 | 36 | 39 |
| PT 3/4×PT 1/4 | SMPT-2008 | 36 | 43 |
| PT 3/4×PT 3/8 | SMPT-2010 | 36 | 44 |
| PT 3/4×PT 1/2 | SMPT-2015 | 36 | 48 |
| PT 3/4×PT 3/4 | SMPT-2020 | 36 | 50 |
| PT １×PT 1/4 | SMPT-2508 | 46 | 48 |
| PT １×PT 3/8 | SMPT-2510 | 46 | 49 |
| PT １×PT 1/2 | SMPT-2515 | 46 | 53 |
| PT １×PT 3/4 | SMPT-2520 | 46 | 55 |
| PT １×PT １ | SMPT-2525 | 46 | 58 |
| PT １1/4×PT １ | SMPT-3225 | 55 | 64 |
| PT １1/4×PT １1/4 | SMPT-3232 | 55 | 67 |
| PT １1/2×PT 3/4 | SMPT-4020 | 65 | 63 |
| PT １1/2×PT １ | SMPT-4025 | 65 | 66 |
| PT １1/2×PT １1/4 | SMPT-4032 | 65 | 69 |
| PT １1/2×PT １1/2 | SMPT-4040 | 65 | 69 |
| PT ２×PT １ | SMPT-5025 | 75 | 72 |
| PT ２×PT 1 １/2 | SMPT-5040 | 75 | 75 |
| PT ２×PT 2 | SMPT-5050 | 75 | 79 |
| PT 21/2×PT 21/2 | SMPT-6565 | 95 | 81 |
| PT 3×PT 3 | SMPT-8080 | 100 | 85 |
Steel grade SUS304, SUS316 is also available in some cases. We can also manufacture products in sizes not listed, so please feel free to contact us.
Since no pressure resistance test has been conducted, no pressure resistance guarantee is provided.
