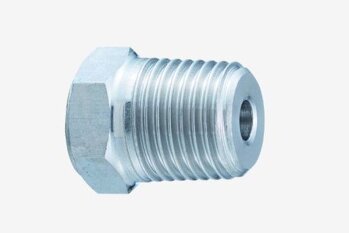

M thread bushing Low pressure type
This is a special bushing with PT thread for the male thread and M thread for the female thread.
Izutsu's bushings (M thread) are made of SUS304 material, which is corrosion resistant and can be used in a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| material properties | SUS304 |
|---|
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PT 1/8×M5-P0.8 | SBPM-0606 | 12 | 16 |
| PT 1/4×M5-P0.8 | SBPM-0808 | 14 | 18 |
We can also manufacture products in sizes not listed, so please feel free to contact us for more information.
Click here to see the production results of M thread x piping threads.
