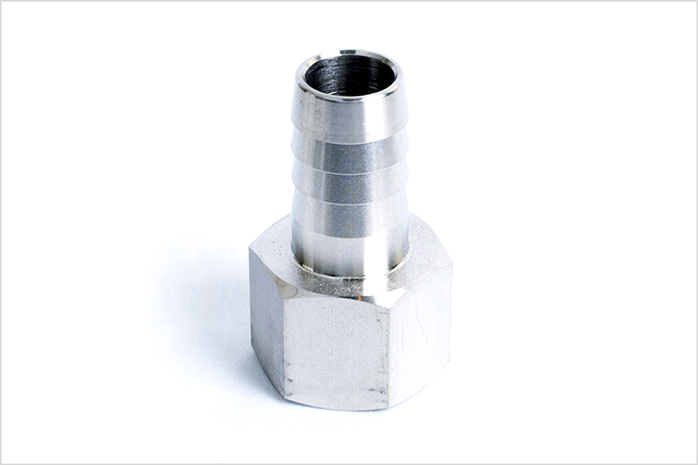

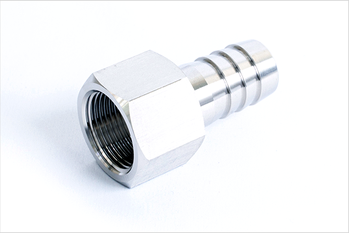

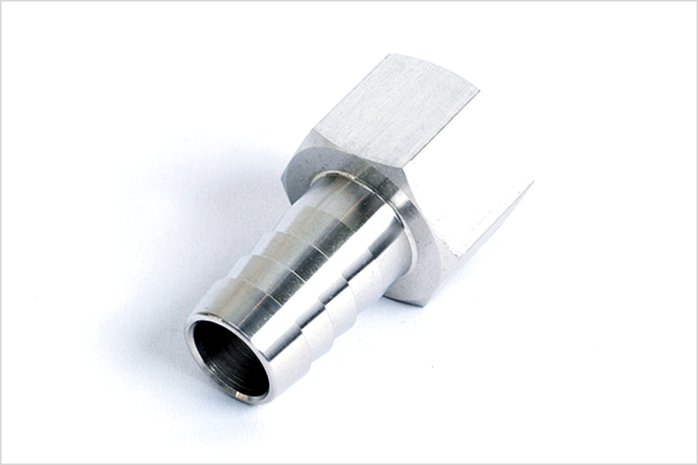

Hexagonal hose nipple (female type)
Izutsu's hexagonal hose nipples (female type) are made of SUS304 material, which is corrosion resistant and can be used in a wide range of applications. These are our own products (MADE IN JAPAN) manufactured completely in Japan. We supply stable products under reliable control by our own inspection work
Product Specifications
Working pressure | 1.0MPa(Normal temperature) |
---|---|
Operating temperature | Same as hose specifications |
material properties | SUS304 |
fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
Nominal size | Hose diameter | length | Hoselength | |
---|---|---|---|---|
Dφ | L | L1 | ||
PT 1/8 | SHF-006-0060 | 6 | 36 | 20 |
PT 1/4 | SHF-008-0070 | 7 | 39 | 20 |
PT 1/4 | SHF-008-0080 | 8 | 42 | 23 |
PT 1/4 | SHF-008-0090 | 9 | 42 | 23 |
PT 1/4 | SHF-008-0105 | 10.5 | 42 | 23 |
PT 1/4 | SHF-008-0120 | 12 | 40 | 23 |
PT 3/8 | SHF-010-0090 | 9 | 44 | 23 |
PT 3/8 | SHF-010-0105 | 10.5 | 46 | 25 |
PT 3/8 | SHF-010-0120 | 12 | 44 | 25 |
PT 3/8 | SHF-010-0140 | 14 | 48 | 27 |
PT 3/8 | SHF-010-0160 | 16 | 46 | 27 |
PT 1/2 | SHF-015-0105 | 10.5 | 51 | 27 |
PT 1/2 | SHF-015-0120 | 12 | 55 | 30 |
PT 1/2 | SHF-015-0140 | 14 | 55 | 30 |
PT 1/2 | SHF-015-0160 | 16 | 52 | 30 |
PT 1/2 | SHF-015-0190 | 19 | 58 | 33 |
PT 3/4 | SHF-020-0160 | 16 | 62 | 35 |
PT 3/4 | SHF-020-0190 | 19 | 59 | 35 |
PT 3/4 | SHF-020-0205 | 20.5 | 59 | 35 |
PT 1 | SHF-025-0270 | 27 | 71 | 40 |
PT 1-1/4 | SHF-032-0340 | 34 | 90 | 52 |
PT 1-1/2 | SHF-040-0405 | 40.5 | 95 | 57 |
PT 2" | SHF-050-0525 | 52.5 | 108 | 63 |
We can also manufacture products in sizes and materials not listed, so please feel free to contact us
