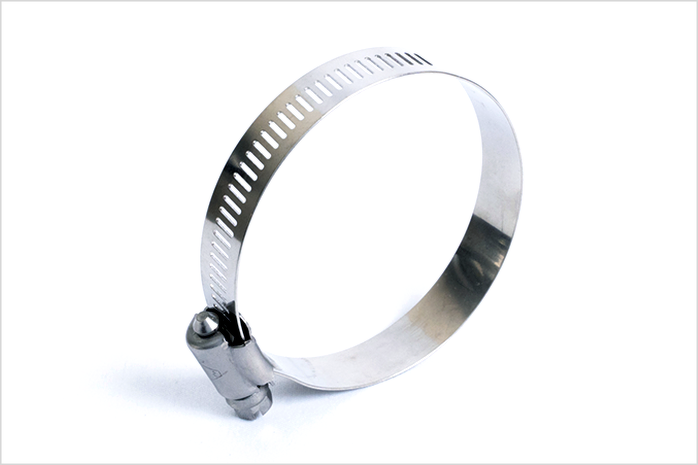

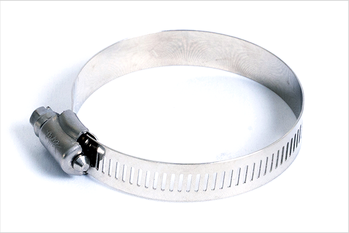

hoseband
This hose band is used for tightening hoses. All stainless steel (304), so it can be used in a wide range of locations. Use with our hexagonal hoses.
Product Specifications
| Operating temperature | Same as hose specifications |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | Tightening rangeφmm | |
|---|---|---|
| Minimum diameter | largest diameter | |
| MS-02 | 6 | 16 |
| MS-03 | 8 | 22 |
| SS-06 | 11 | 20 |
| SS-08 | 13 | 23 |
| SS-10 | 14 | 27 |
| SS-12 | 18 | 32 |
| SS-16 | 21 | 38 |
| SS-20 | 21 | 44 |
| SS-24 | 27 | 51 |
| SS-28 | 33 | 57 |
| SS-32 | 40 | 64 |
| SS-36 | 46 | 70 |
| SS-40 | 52 | 76 |
| SS-44 | 59 | 83 |
| SS-48 | 65 | 89 |
| SS-52 | 71 | 95 |
| SS-56 | 78 | 102 |
| SS-64 | 90 | 114 |
| SS-72 | 103 | 127 |
| SS-80 | 117 | 140 |
| SS-88 | 130 | 152 |
| SS-96 | 141 | 165 |
| SS-104 | 157 | 178 |
| SS-128 | 165 | 216 |
| SS-140 | 135 | 235 |
| SS-164 | 174 | 273 |
| SS-176 | 193 | 292 |
| SS-208 | 244 | 343 |
Steel Type SUS304
