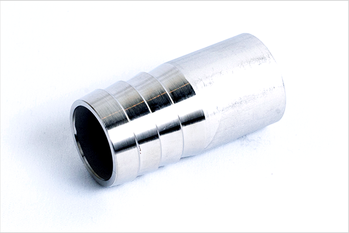

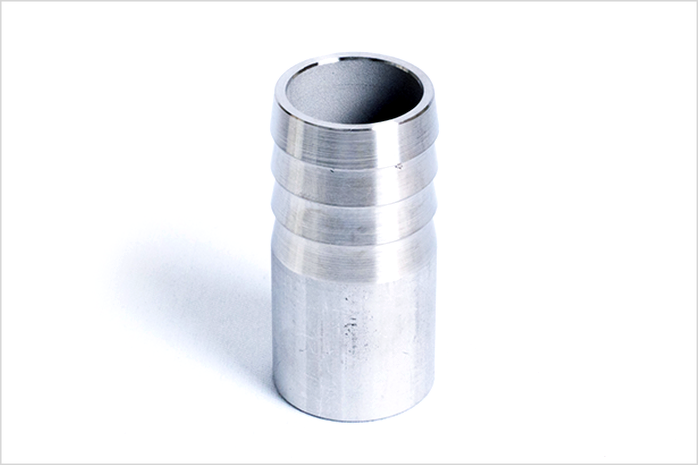

Welding hose opening
The welding hose ports are made of SUS304, 316, and 316L materials, which are corrosion resistant and can be used in a wide range of applications. We can also manufacture non-standard sizes. We inspect our products at our own factory and deliver reliable products with short delivery times, low prices, and high quality.
Product Specifications
| Working pressure | 10kgf/m2 (room temperature) |
|---|---|
| Operating temperature | Same as hose specifications |
| material properties | SUS304 SUS316 SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | Hose diameter | length | |
|---|---|---|---|
| Dφ | L | ||
| 1/8 | SHW-0105 | 10.5 | 41 |
| 1/4 | SHW-0138 | 13.8 | 41 |
| 3/8 | SHW-0173 | 17.3 | 42 |
| 1/2 | SHW-0217 | 21.7 | 52 |
| 3/4 | SHW-0272 | 27.2 | 55 |
| １ | SHW-0340 | 34 | 60 |
| １1/4 | SHW-0427 | 42.7 | 66 |
| １1/2 | SHW-0486 | 48.6 | 70 |
| ２ | SHW-0605 | 60.5 | 80 |
| ２1/2 | SHW-0763 | 76.3 | 100 |
| ３ | SHW-0891 | 89.1 | 110 |
| ４ | SHW-1143 | 114.3 | 125 |
| ５ | SHW-1398 | 139.8 | 150 |
| ６ | SHW-1652 | 165.2 | 175 |
Steel Type SUS304 SUS316 SUS316L
We can also manufacture products in sizes and materials not listed, so please feel free to contact us.
