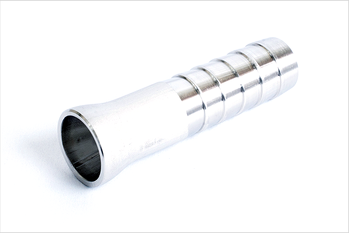

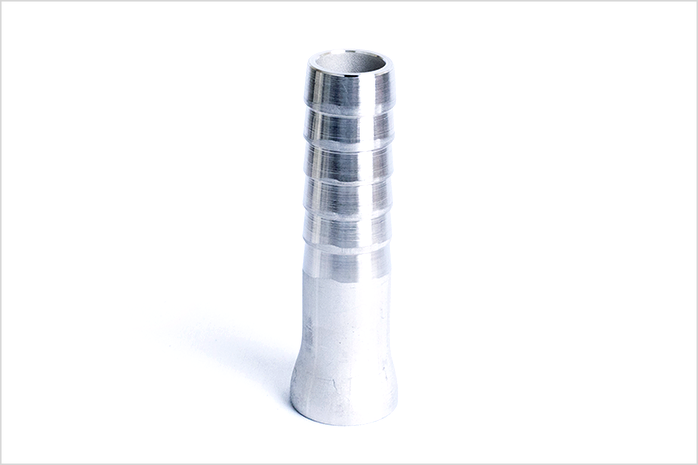

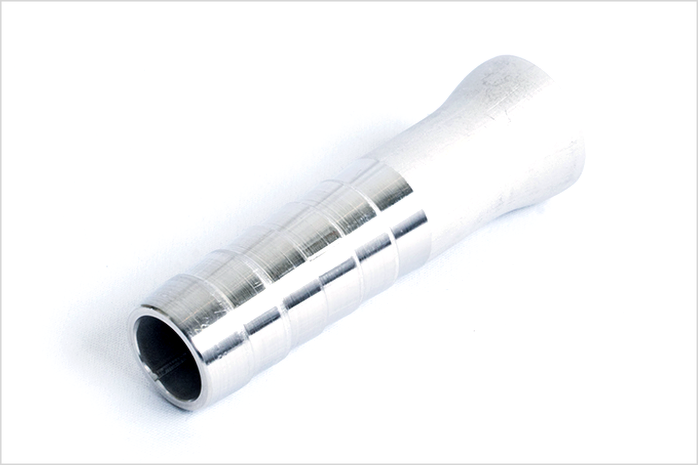

bugle tube
Wrapper tubes are made of SUS304, 316, and 316L materials, which are corrosion resistant and can be used in a wide range of applications. Also, non-standard sizes can be manufactured. We inspect products at our own factory and deliver reliable products with short delivery times, low prices, and high quality.
Product Specifications
| Working pressure | 10kgf/m2 (room temperature) |
|---|---|
| Operating temperature | Same as hose specifications |
| material properties | SUS304 SUS316 SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | Hose diameter | length | |
|---|---|---|---|
| Dφ | L | ||
| 3/4（27.2） | SHR-0217 | 21.7 | 89 |
| １（34） | SHR-0272 | 27.2 | 97 |
| １1/4（42.7） | SHR-0340 | 34 | 100 |
| １1/2（48.6） | SHR-0380 | 38 | 117 |
| ２（60.5） | SHR-0508 | 50.8 | 131 |
| ２1/2（76.3） | SHR-0635 | 63.5 | 150 |
| ３（89.1） | SHR-0763 | 76.3 | 150 |
| ４（114.3） | SHR-1016 | 101.6 | 170 |
| ５（139.8） | SHR-1270 | 127 | 186 |
| ６（165.2） | SHR-1525 | 152.5 | 198 |
| ８（216.3） | SHR-2040 | 204 | 240 |
Steel Type SUS304 SUS316 SUS316L
We can also manufacture products in sizes and materials not listed, so please feel free to contact us.
