hose connector

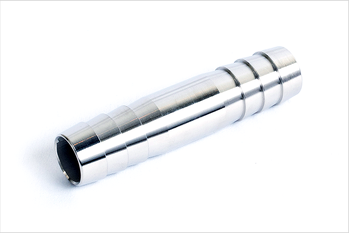

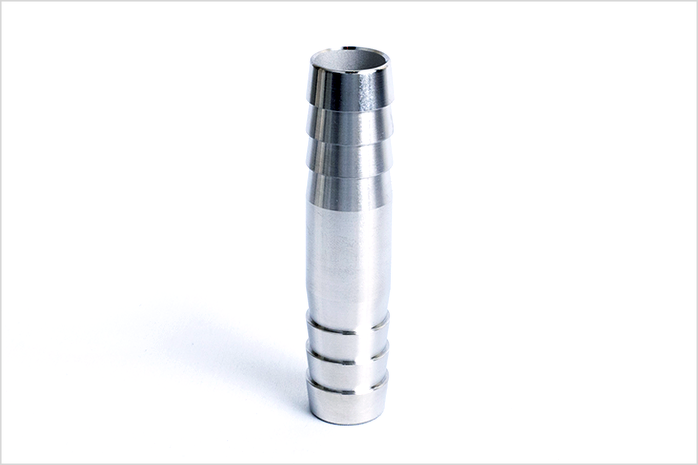

Hose joints (both bamboo shoots) are made of SUS304 material, which is corrosion resistant and can be used in a wide range of applications. We can also manufacture products in non-standard sizes. We inspect the products at our own factory and deliver reliable products with short delivery time, low price, and high quality.
Product Specifications
| Working pressure | 10kgf/m2 (room temperature) |
| Operating temperature | Same as hose specifications |
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | Hose diameter | length | |
|---|---|---|---|
| Dφ | L | ||
| ※6 | SH-0060 | 6 | 55 |
| 7 | SH-0070 | 7 | 55 |
| 8 | SH-0080 | 8 | 65 |
| 9 | SH-0090 | 9 | 65 |
| 10.5 | SH-0105 | 10.5 | 70 |
| 12 | SH-0120 | 12 | 70 |
| 14 | SH-0140 | 14 | 75 |
| 16 | SH-0160 | 16 | 75 |
| 19 | SH-0190 | 19 | 80 |
| 20.5 | SH-0205 | 20.5 | 90 |
| 21.7 | SH-0217 | 21.7 | 90 |
| 25 | SH-0250 | 25 | 100 |
| 27.2 | SH-0272 | 27.2 | 100 |
| 32 | SH-0320 | 32 | 100 |
| 34 | SH-0340 | 34 | 110 |
| 38 | SH-0380 | 38 | 120 |
| 40 | SH-0400 | 40 | 120 |
| 50.8 | SH-0508 | 50.8 | 130 |
Steel grade SUS304 *Marked SUS316 is also available.
We can also manufacture products in sizes and materials not listed, so please feel free to contact us.
