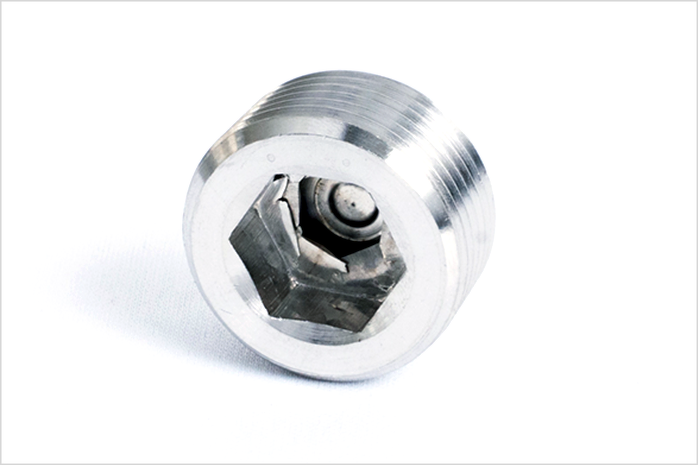

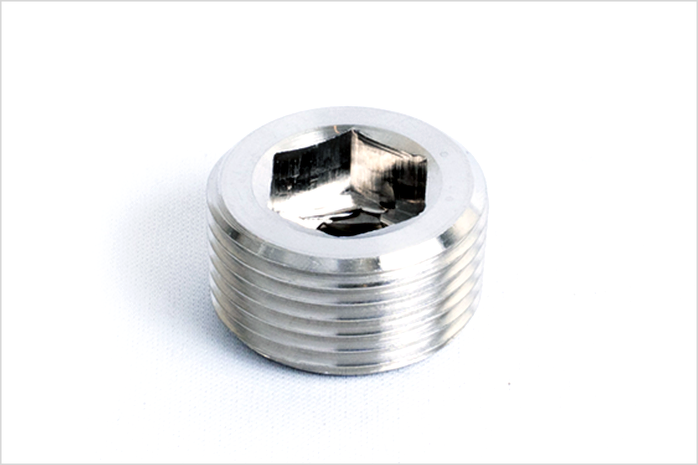

Sinking plug (PT, left-hand thread) high pressure type
Izutsu's sunken plugs (PT, left-hand thread) are made of SUS304 material, which is corrosion resistant and can be used in a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | XM-7/SUS304/SUS316/SUS316L |
| fluid | Water, air, oil, solution |
(Unit: mm)
| Nominal size | hexagon socket head | length | |
|---|---|---|---|
| H | L | ||
| PT 1/8 | SSP-L-006 | 5 | 7 |
| PT 1/4 | SSP-L-008 | 6 | 9 |
| PT 3/8 | SSP-L-010 | 8 | 10 |
| PT 1/2 | SSP-L-015 | 10 | 12 |
| PT 3/4 | SSP-L-020 | 14 | 14 |
| PT １ | SSP-L-025 | 17 | 16.5 |
| PT １1/4 | SSP-L-032 | 22 | 19 |
| PT １1/2 | SSP-L-040 | 22 | 20 |
| PT 2 | SSP-L-050 | 27 | 22 |
