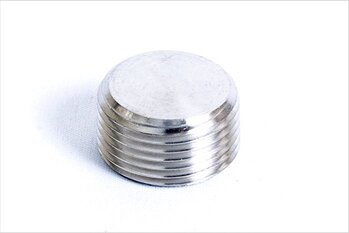

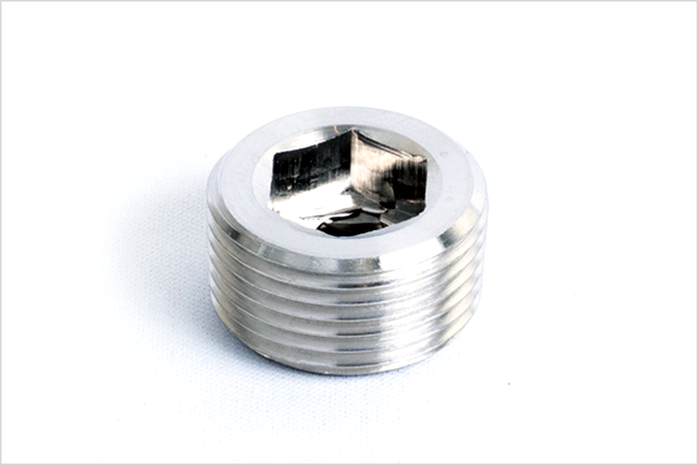

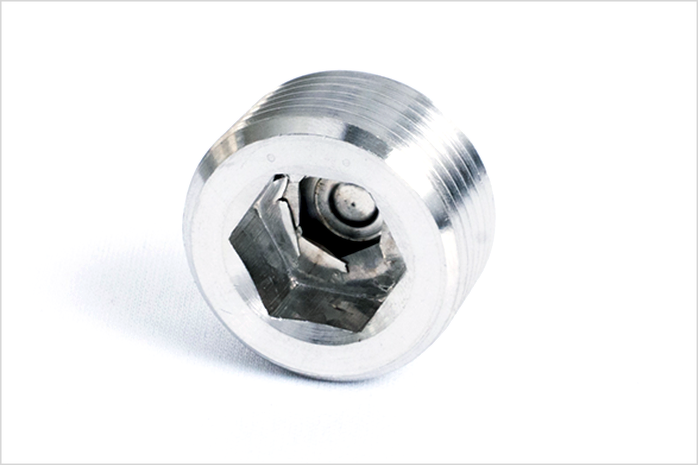

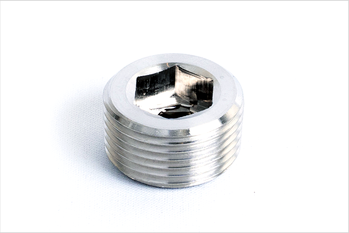

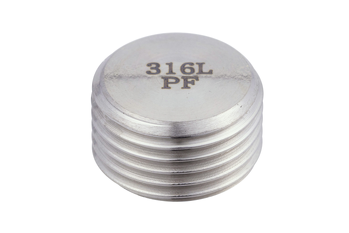

Sinking plug (PF) high pressure type
Izutsu's sunken plugs (PF) are made of SUS304, 316, and 316L materials, which provide excellent corrosion resistance and a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work. Our original products.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304/SUS316/SUS316L |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | hexagon socket head | length | |
|---|---|---|---|
| H | L | ||
| PF 1/16 | SSPPF-004 | 4 | 6 |
| PF1/8 | SSPPF-006 | 5 | 7 |
| PF1/4 | SSPPF-008 | 6 | 9 |
| PF3/8 | SSPPF-010 | 8 | 10 |
| PF 1/2 | SSPPF-015 | 10 | 12 |
| PF 3/4 | SSPPF-020 | 14 | 14 |
| PF １ | SSPPF-025 | 17 | 16.5 |
| PF １1/4 | SSPPF-032 | 22 | 19 |
| PF １1/2 | SSPPF-040 | 22 | 20 |
| PF ２ | SSPPF-050 | 27 | 22 |
| PF ２1/2 | SSPPF-065 | 36 | 30 |
| PF ３ | SSPPF-080 | 41 | 35 |
| PF ４ | SSPPF-100 | 50 | 40 |
We can also manufacture products in sizes and materials not listed, so please feel free to contact us.
Since no pressure resistance test has been conducted, no pressure resistance guarantee is provided.
