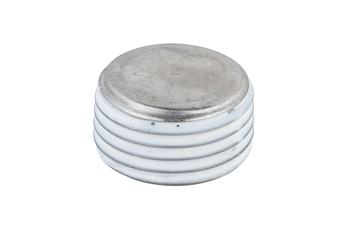

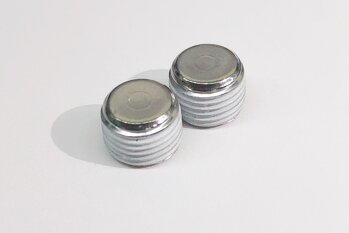

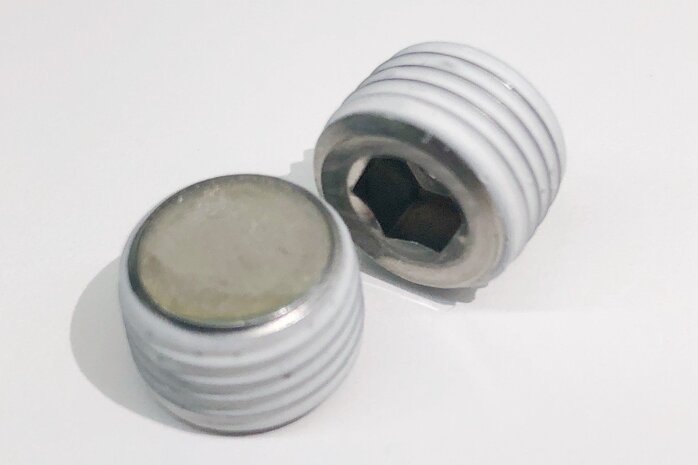

Sinking plug with seal (PT), high pressure type
A new lineup of sealed sunken plugs (PT) from Izutsu Seisakusho has been added to the lineup.
Since there is no need to wrap sealing tape before installation, work time is greatly reduced.
Product Specifications
| Max. working pressure | S/80 equivalent |
| material properties | XM-7 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | hexagon socket head | length | |
|---|---|---|---|
| H | L | ||
| PT 1/8 | SSP-S-006 | 5 | 7 |
| PT 1/4 | SSP-S-008 | 6 | 9 |
| PT 3/8 | SSP--S-010 | 8 | 10 |
Steel grade XM-7 (equivalent to 304) We can also manufacture products in sizes and materials not listed, so please feel free to contact us.
Since no pressure resistance test has been conducted, no pressure resistance guarantee is provided.
