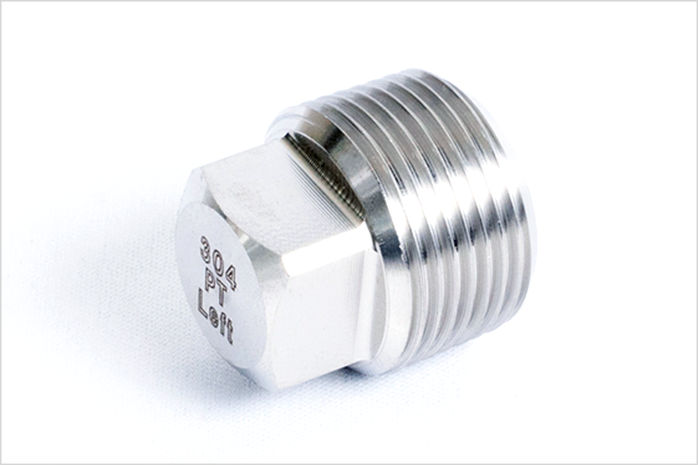

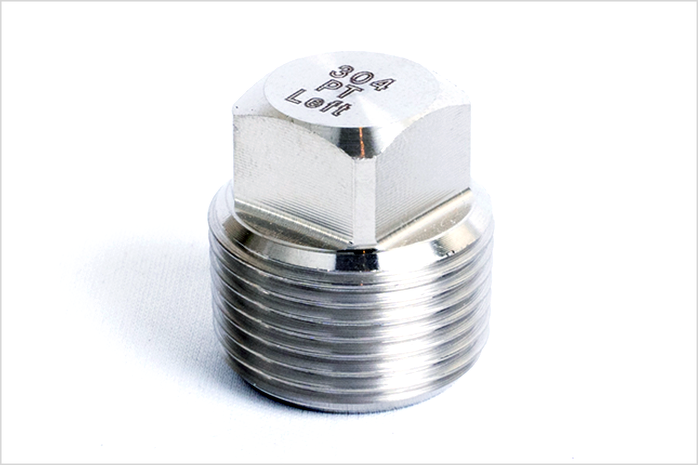

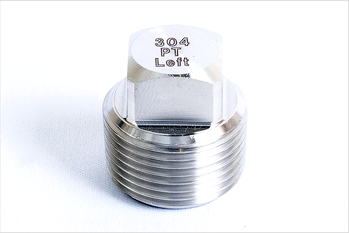

Square plug (R, left hand thread) high pressure type
Izutsu's square plugs (R, left hand thread) are made of SUS304 material, which is corrosion resistant and can be used in a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| R 1/8(left-hand thread) | S4P-L-006 | 7 | 15 |
| R 1/4(left-hand thread) | S4P-L-008 | 9 | 19 |
| R 3/8(left-hand thread) | S4P-L-010 | 12 | 21 |
| R 1/2(left-hand thread) | S4P-L-015 | 14 | 25 |
| R 3/4(left-hand thread) | S4P-L-020 | 17 | 28 |
| R １(left-hand thread) | S4P-L-025 | 19 | 32 |
| R １1/4(left-hand thread) | S4P-L-032 | 23 | 35 |
| R １1/2(left-hand thread) | S4P-L-040 | 26 | 36 |
| R ２(left-hand thread) | S4P-L-050 | 32 | 41 |
| R ２1/2(left-hand thread) | S4P-L-065 | 41 | 49 |
We can also manufacture products in sizes and materials not listed, so please feel free to contact us.
Since no pressure resistance test has been conducted, no pressure resistance guarantee is provided.
