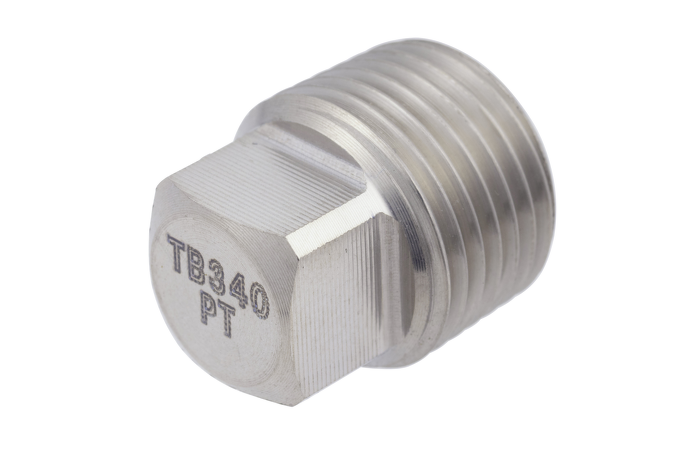

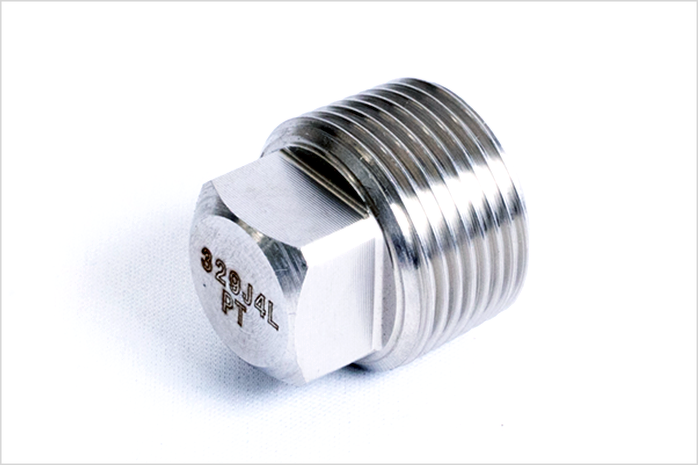

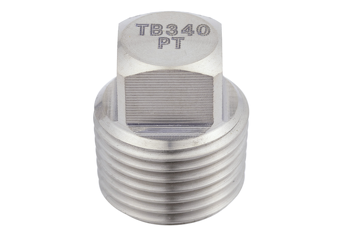

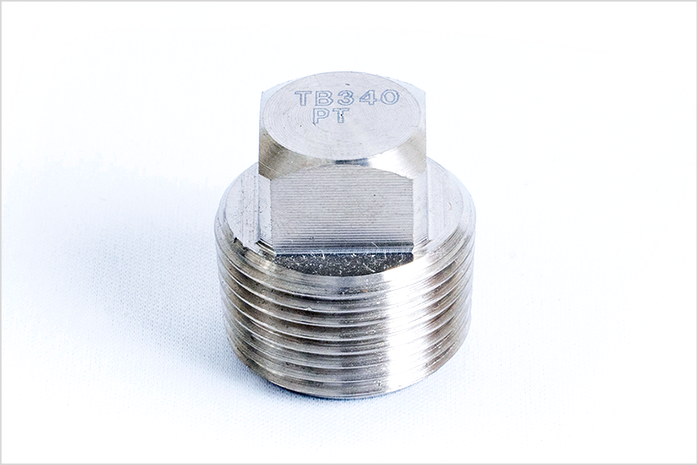

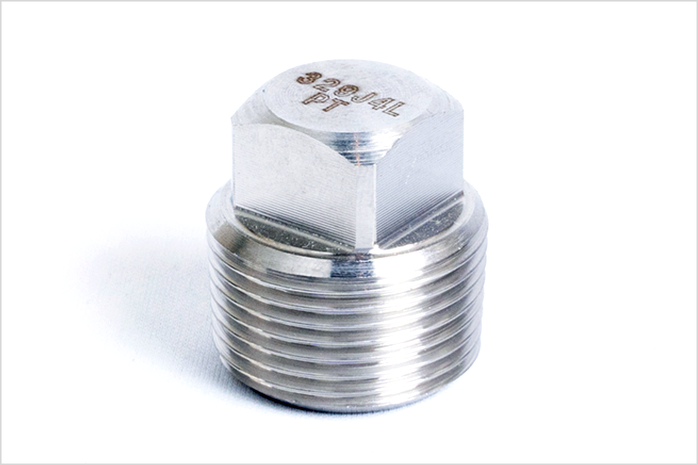

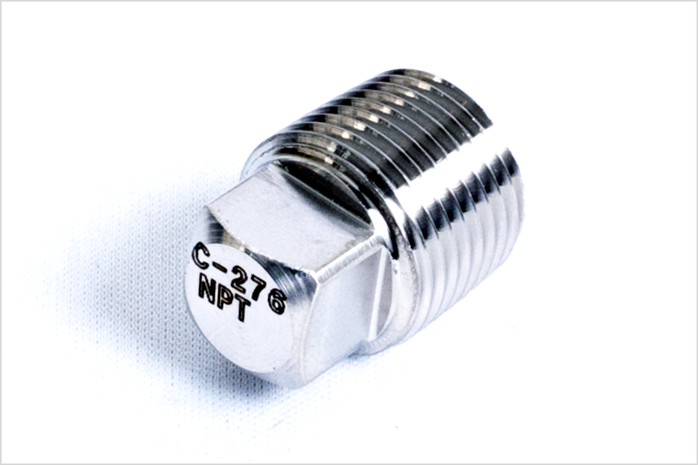

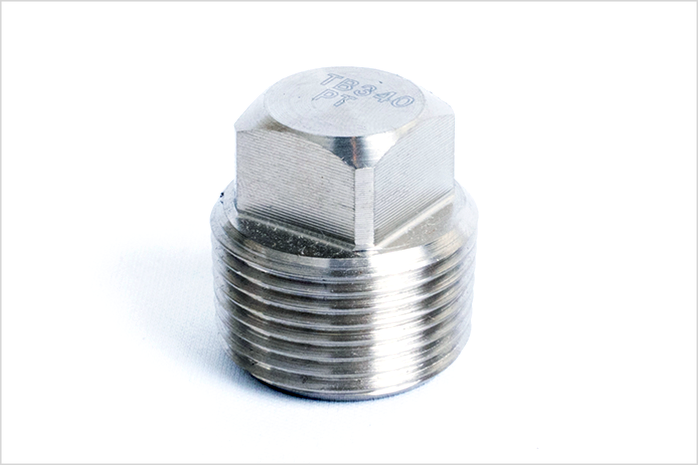

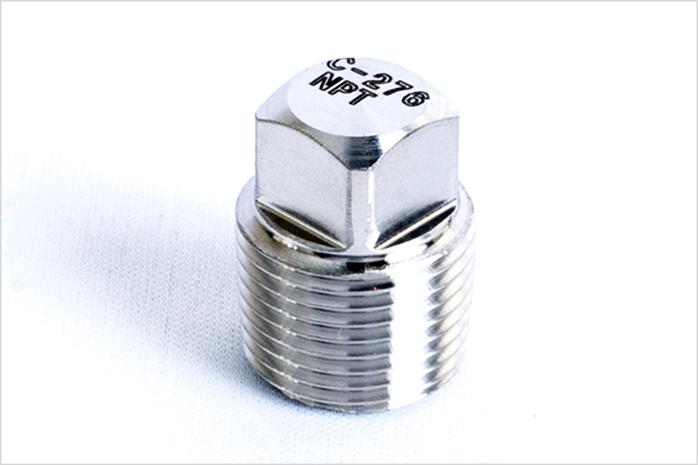

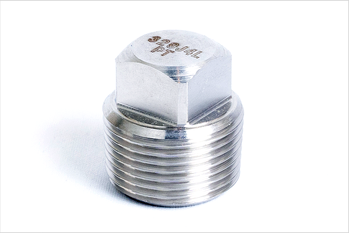

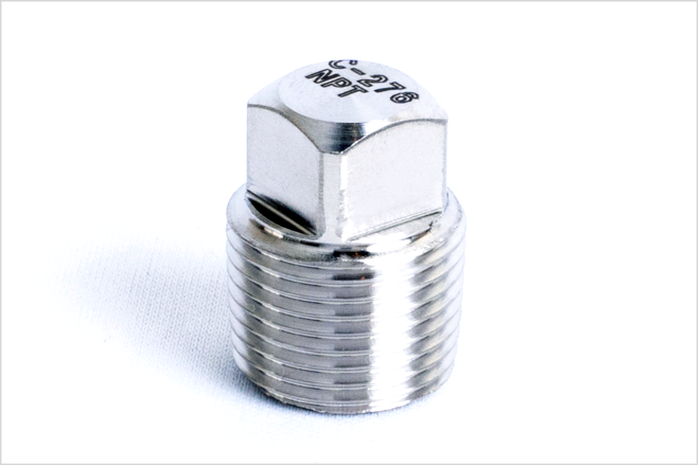

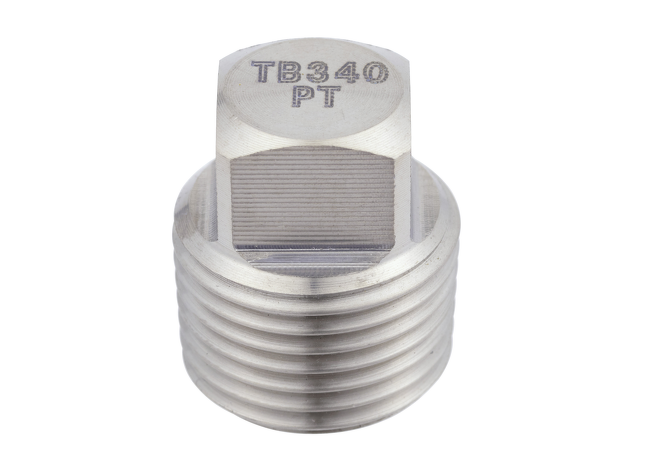

Special material, square plug (PT), high pressure type
Izutsu's square plugs can accommodate requests for the fabrication of any material. We can respond to a wide variety of customer requests with our abundant experience in manufacturing titanium, 329J4L, 304L, 317L, Alloy C276 (Hastelloy), SCM435, SCM435H, 403, aluminum, and other materials. We provide a stable supply of products under reliable control by our own inspection work.
Product Specifications
| Max. working pressure | Same as production material |
|---|---|
| material properties | Titanium/329J4L/304L/317L/alloy C276/403/SCM435/SCM435H/aluminum, etc. |
| fluid | Same as production material |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PT 1/8 | S4P-006 | 7 | 15 |
| PT 1/4 | S4P-008 | 9 | 19 |
| PT 3/8 | S4P-010 | 12 | 21 |
| PT 1/2 | S4P-015 | 14 | 25 |
| PT 3/4 | S4P-020 | 17 | 28 |
| PT １ | S4P-025 | 19 | 32 |
| PT １1/4 | S4P-032 | 23 | 35 |
| PT １1/2 | S4P-040 | 26 | 36 |
| PT ２ | S4P-050 | 32 | 41 |
| PT ２1/2 | S4P-065 | 41 | 49 |
| PT ３ | S4P-080 | 46 | 53 |
We can also manufacture products in sizes and materials not listed, such as Titanium 329J4L 304L Alloy C276 SCM435 SCM435H 403, etc. Please feel free to contact us for more information.
