Square plug (PF) high pressure type
Izutsu's square plugs (PF) are made of SUS304 material, which is corrosion resistant and can be used in a wide range of applications. We have a wide variety of products to meet the diverse needs of our customers. We provide a stable supply of products under reliable control by our own inspection work. Our original products.
Product Specifications
| Max. working pressure | S/80 equivalent |
|---|---|
| material properties | SUS304 |
| fluid | Water, air, oil, solution |
Product Details
(Unit: mm)
| Nominal size | fixed diameter | length | |
|---|---|---|---|
| H | L | ||
| PF 1/4 | S4PPF-008 | 9 | 19 |
| PF 3/8 | S4PPF-010 | 12 | 21 |
| PF 1/2 | S4PPF-015 | 14 | 25 |
| PF 3/4 | S4PPF-020 | 17 | 28 |
| PF １ | S4PPF-025 | 19 | 32 |
| PF １ 1/4 | S4PPF-032 | 23 | 35 |
| PF １ 1/2 | S4PPF-040 | 26 | 36 |
| PF 2 | S4PPF-050 | 32 | 41 |
We can also manufacture products in sizes and materials not listed, so please feel free to contact us.

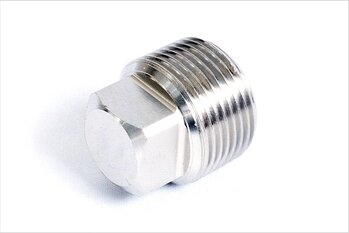

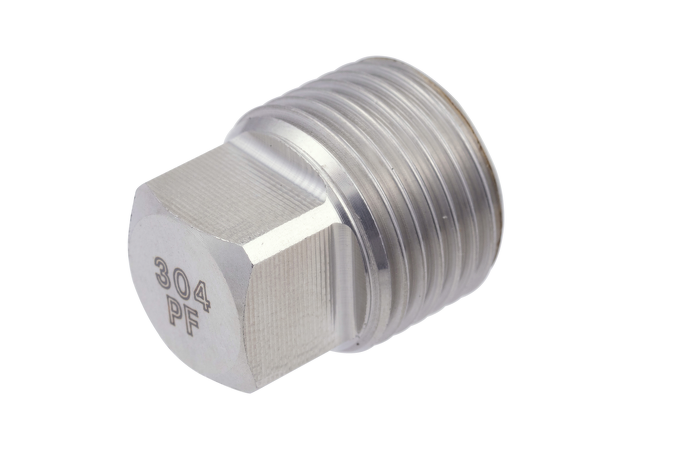

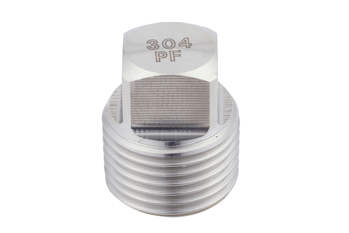

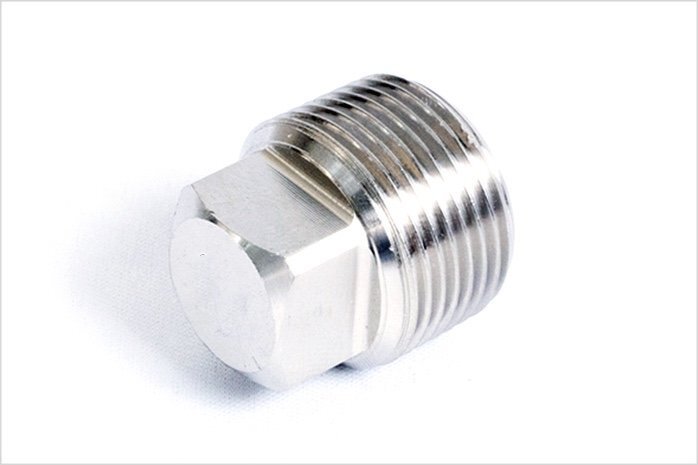

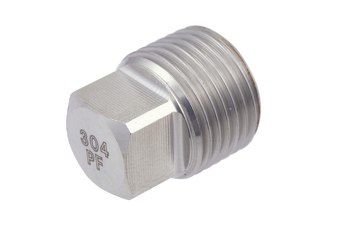

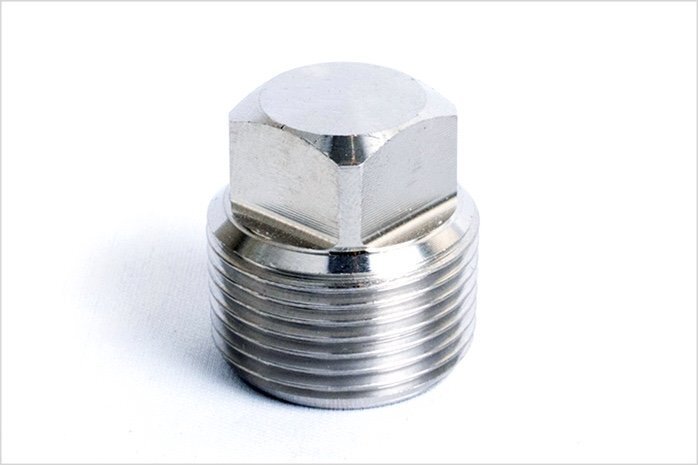

We do not guarantee pressure resistance because it has not been tested for pressure resistance. The photo is for reference only and may differ from the actual product.
